GO Regulator 过滤器 F4 102120 / F6K 101700 - GO Regulator 紧凑型316 SS结构过滤器，额定工作压力高达6000 psig。可用的过滤孔隙率为10-300微米。该过滤器设计用作标准的在线过滤器，或者可以很容易地拧入压力调节器或阀体中以进行入口保护。

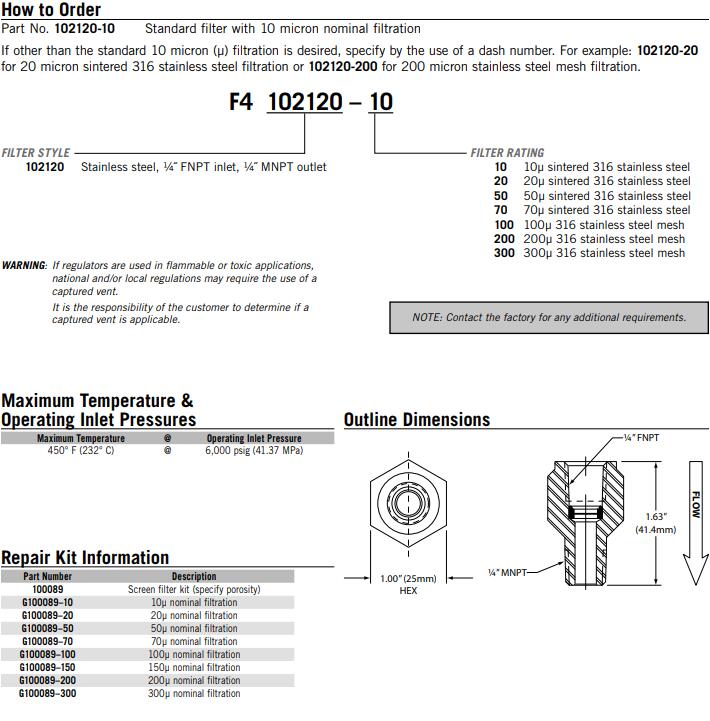

GO Regulator 过滤器 F4 102120

Features & Specifi cations
• Compact size
• Economical design
• Easily changed fi lter elements
• Stainless steel body (316 series) with PTFE seals
• Nominal micron (μ) ratings of fi ltration available:
10μ sintered 316 stainless steel
20μ sintered 316 stainless steel
50μ sintered 316 stainless steel
70μ sintered 316 stainless steel
100μ 316 stainless steel mesh
200μ 316 stainless steel mesh
300μ 316 stainless steel mesh
• Pressures up to 6,000 psig (41.37 MPa)

GO Regulator 过滤器 F6K 101700

Features & Specifi cations
• Nominal ratings of fi ltration available:
2–5μ sintered
5–9μ sintered
10–15μ sintered
20–30μ sintered
40–55μ sintered
100μ 316 stainless steel mesh
150μ 316 stainless steel mesh
• Available with optional bypass

101700 In-line, stainless steel, ¼˝ FNPT connections
101830 1/8˝ NPT bypass, stainless steel, ¼˝ FNPT connections
101850 ¼˝ FNPT bypass, stainless steel, ¼˝ FNPT connections
102980 In-line, MONEL®, ¼˝ FNPT connections*
102981 1/8˝ FNPT, bypass, MONEL®, ¼” FNPT connections*
102982 ¼˝ FNPT bypass, MONEL®, ¼˝ FNPT connections*
107476 In-line, stainless steel, ¼˝ MNPT outlet, ¼˝ FNPT inlet
107519 1/8˝ bypass, stainless steel, ¼˝ MNPT outlet, ¼˝ FNPT inlet
107518 ¼˝ bypass, stainless steel, ¼˝ MNPT outlet, ¼˝ FNPT inlet
