BIAX机器人系统和摆动驱动器产品有：
BIAX机器人系统与挠度
BIAX挠度与快速变化系统的机器人系统
BIAX挠度与 HSK 工具拟合机器人系统。CENTORK定位器
BIAX摆动驱动器

BIAX机器人系统和摆动驱动器产品描述：
BIAX机器人系统与挠度
挠曲力是通过压缩空气调整连续可调
压缩空气应用于活塞可确保该工具总是返回到起始位置在固定站后的挠度。BIAX挠性驱动器
BIAX机器人系统与挠度产品：

Type designation	RWA 2-40	RWA 2-30	RWA 2–22	RWA 5-12	RWA 2-24
Integrated grinding spindle	R 3040	R 3030	R 3622	R 4112	TR 3624
	Oil-lubricated	Oil-lubricated	Oil-lubricated	Oil-lubricated	Dry-run
Order number	150 830 835	150 830 820	150 830 825	150 830 885	150 830 860
Speed (min -1)	40,000	30,000	22,000	12,000	24,000
Power (Watt)	240	240	300	400	300
Tool mounting hole max.	8	8	8	10	8
Collet type (mm)	ZG 7/6	ZG 7/6	ZG 7/6	ZG 8/6	ZG 7/6
Direction of rotation	clockwise	clockwise	clockwise	clockwise	clockwise
Exhaust air direction	forward	forward	forward	forward	forward
Weight (g)	1120	1135	1400	2095	1465
Air inlet	R 1/8"	R 1/8"	R 1/8"	R 1/4"	R 1/8"
Overall length X (mm)	193	193	207	263	219
Grinding spindle length dimension S (mm)	110	110	124	176	138
Tool mounting hole length W (mm)	83	83	83	87	81
Chop spindle length Z (mm)	41	41	41	31	51
Spindle dia. D (mm)	30	30	36	41	36

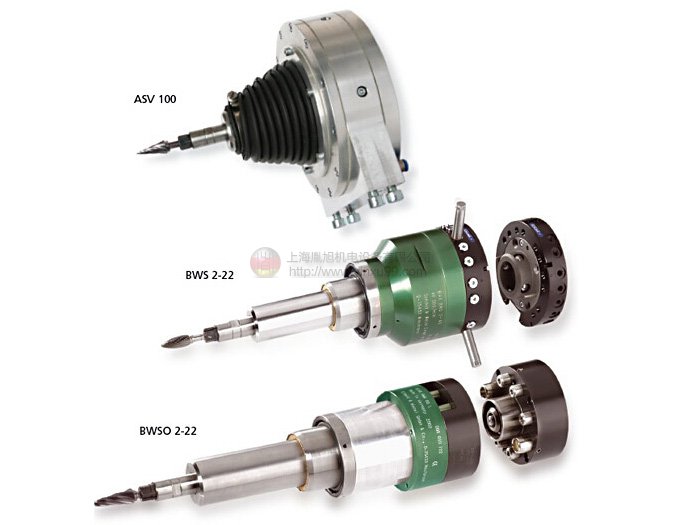

BIAX挠度与快速变化系统的机器人系统

ASV 100
这个系统使并行挠度的纺锤波，简化编程。工具自动复位到零位置。
BWS 2 22 & BWSO 2-22
这些机器人系统允许机器人单元格中的工具快速交换。额外纺锤体不同革命是可用的。

BIAX挠度与快速变化系统的机器人系统产品：

Type designation	ASV 100	BWS 2-22	BWSO 2-22
Integrated grinding spindle	R 3622	R 3622	R 3622
	Oil-lubricated	Oil-lubricated	Oil-lubricated
Order number	150 832 000	150 830 940	150 831 030
Speed (min -1)	22,000	22,000	22,000
Power (Watt)	300	300	300
Tool mounting hole max.	8	8	8
Collet type (mm)	ZG 7/6	ZG 7/6	ZG 7/6
Direction of rotation	clockwise	clockwise	clockwise
Exhaust air direction	forward	rear	rear
Weight (g)	2420	2400	2350
Air inlet	2 x R 1/8"	robot sided	robot sided
Systems with more spindles and different numbers of revolutions available on request. Additional technical information by request.

挠度与 HSK 工具拟合机器人系统

RWA HSK 系统
这些工具是双向拉伸 RWA 线的变种。HSK 100 或 HSK 63 工具配件使用RWA 主轴在机床。工具是可用的有或没有个别调整的接触压力调节阀。BFI紧凑型火焰控制器

BIAX挠度与 HSK 工具拟合机器人系统产品：

Type designation	RWA 2-40 - HSK	RWA 2-30 - HSK	RWA 2–22 - HSK	RWA 5-12 - HSK	RWA 2-24 - HSK
Integrated grinding spindle	R 3040	R 3030	R 3622	R 4112	TR 3624
	Oil-lubricated	Oil-lubricated	Oil-lubricated	Oil-lubricated	Dry run
Order no. with regulating valve HSK 100	150 831 091	150 831 081	150 831 061	150 831 101	150 831 071
Order no. without regulating valve HSK100	150 831 090	150 831 080	150 831 060	150 831 100	150 831 070
Order no. with regulating valve HSK 63	on demand	on demand	150 831 063	on demand	on demand
Order no. without regulating valve HSK 63	-	-	-	-	-
Speed (min -1)	40,000	30,000	22,000	12,000	24,000
Power (Watt)	240	240	300	400	300
Tool mounting hole max.	8	8	8	10	8
Collet type (mm)	ZG 7/6	ZG 7/6	ZG 7/6	ZG 8/6	ZG 7/6
Direction of rotation	clockwise	clockwise	clockwise	clockwise	clockwise
Exhaust air direction	forward	forward	forward	forward	forward
Weight (g)	4480	4480	4700	6500	4700
Air inlet	R 1/8"	R 1/8"	R 1/8"	R 1/4"	R 1/8"
Additional technical information for RWA 5-12-HSK available by request.

BIAX摆动驱动器

摆动驱动器非常适合于在绘图仪来切割纸板、 聚苯乙烯和其他材料的使用。此外，此工具可以去毛刺部分，当工件引导到机器人。
也可以是 FR 8 2 归档工具。这是一个直线的气动工具，在机器人的版本中。德国BFI
BIAX摆动驱动器产品：

Type designation	F 5-4 R	F 5-4 R SA	F 5-4 R SA	PLV 01	AG 90
Order no.	150 310 820	150 310 825	150 310 830	150 310 910	150 310 900
Stroke rate (min)	4,000	4,000	4,000	12,000	12,000
Stroke length (mm)	1-5	3	2	8-9	2-9
Drive type	Vane motor with swash plate drive			Reciprocating piston
Tool mounting hole max. (mm)	3	3	3	6	up to 6
Exhaust air direction	rear	rear	rear	rear	rear
Weight (g)	960	960	960	1200	1900
Matching hose unit	001 366 505	001 366 505	001 366 505	001 974 552	001 974 552
Additional technical information for PLV 01 available by request.

瑞士BIAX工具替代了传统的刮研方式，效率更高，更准确，更** ，用于铸钢，硬质铸铁，可锻铸铁以及其他金属、非金属材料的加工等 。BIAX工具包括：BIAX电动剪、BIAX电动锉、BIAX电动锯、BIAX电动磨光机、BIAX电动刮刀。
